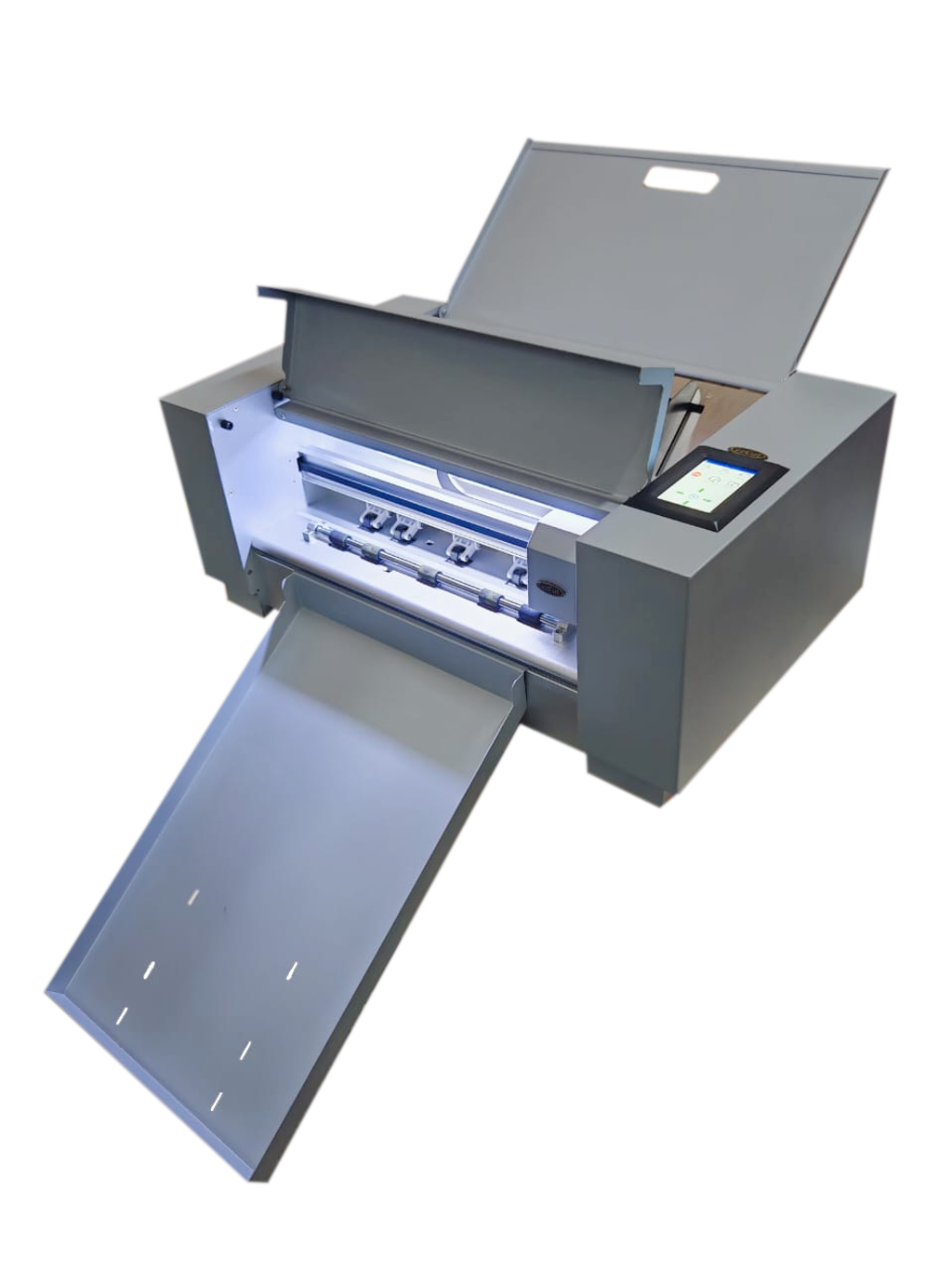

EzCut Max330 Pro Series – Double Row Pressure Wheel Cutter
Smart Automatic Cutter for Stickers, Labels & Packaging
The EzCut Max330 Pro Series is a new-generation automatic contour cutter designed for high-precision sticker and label cutting.
Equipped with a camera positioning system, WiFi connectivity, and powerful 2000g cutting force, it delivers professional results with easy operation.
Now available in two models to fit different production needs:
🟦 EzCut Max330 Pro (Single Head)
🟧 EzCut Max330 Pro Dual Head: For cutting + creasing — ideal for packaging, card, and folding box project
🌟 Main Features
📸 Camera Auto Positioning – Detects contour marks automatically for precise cutting.
💡 Dual Head System (optional) – One head for cutting, another for creasing, perfect for folded packaging work.
📶 WiFi / USB / U-disk Connection – Easily transfer and load cutting files wirelessly or via USB.
💪 2000g Super Cutting Force – Cuts thick materials up to 405gsm effortlessly.
⚡ High Speed 1000mm/s – Fast and accurate cutting for mass production.
📱 4.3” Touchscreen Control Panel – Simple and intuitive operation.
📲 QR Code File Scanning – Load job files instantly by scanning a QR code.
⚙️ Stepper Motor System – Ensures smooth motion and precise contour tracking.
⚙️ Technical Specifications
| Specification | Details |
|---|---|
| Models | EzCut Max330 Pro (Single Head) / Dual Head (Cut + Crease) |
| Max Media Width | 335 mm |
| Max Cutting Width | 330 mm |
| Cutting Length | Unlimited |
| Cutting Speed | 1000 mm/s |
| Cutting Accuracy | ±0.1 mm |
| Repeatability | 0.082 mm |
| Max Material Thickness | 405 gsm |
| Max Cutting Force | 2000 g |
| Motor Type | Stepper Motor |
| Blade Type | Roland Blade |
| Control Panel | 4.3” Touchscreen |
| Positioning Mode | QR Code / Dot / Right Angle |
| Connectivity | WiFi / USB / U-disk / Web Cable |
| Power Consumption | <150 W |
| Voltage | 100V–240V (adaptive) |
| Working Environment | 5°C – 35°C |
| Machine Size | 700 × 425 × 310 mm |
| Weight | 34 kg (gross) / 29 kg (net) |
| Supported Software | CorelDRAW, SignMaster Pro V5 |
| System Support | All Windows versions |
🧩 Material Compatibility
PVC Vinyl
Adhesive Stickers
PET & Synthetic Paper
Metallic Foil Stickers
Art Card & Folding Box Paper (creasing model)
⚖️ Model Comparison
| Feature | EzCut Max330 Pro (Single Head) | EzCut Max330 Pro Dual Head (Cut + Crease) |
|---|---|---|
| Number of Heads | 1 | 2 |
| Function | Cutting only | Cutting + Creasing |
| Suitable For | Stickers, vinyl, label cutting | Stickers, labels, packaging, folding box |
| Camera Auto Positioning | ✅ Yes | ✅ Yes |
| WiFi / USB Connectivity | ✅ Yes | ✅ Yes |
| Max Cutting Force | 2000g | 2000g |
| Max Cutting Speed | 1000mm/s | 1000mm/s |
| Touchscreen Control | ✅ 4.3” | ✅ 4.3” |
| Material Support | Up to 405gsm | Up to 405gsm |
| Creasing Function | ❌ No | ✅ Yes |
| Best For | Label, sticker, decal cutting | Box making, packaging, label & sticker |
💼 Ideal For
Label & sticker producers
Print-on-demand shops
Packaging & box prototype makers
Design and creative studios
