EzCut C Plus Series Cutting Plotter

EzCut C Plus Series – Smart Cutting Starts Here!

🚀 Looking for accurate, fast, and efficient cutting?

The EzCut C Plus Series is your ultimate cutting plotter – perfect for automatic contour cutting, wide material compatibility, and professional results!

✅ Built-in Carriage Camera – Auto detect mark & position in just 5–7 seconds!

✅ Super Force Rollers 1000–2000g – Strong pressure for smoother feeding & cutting, up to 300–400gsm art card!

✅ SignMaster Pro V5 Software – One-click contour extraction, simple and fast!

✅ Wide Application – Cuts diamond grade reflective film, PVC, twill film, self-adhesives, and more!

✅ WiFi File Transfer – Send cutting files wirelessly, no cable needed!

✅ Multi-Function Cutting – Full cut, half cut, dotted cut, crease*, engrave* (engraving tool required).

✅ Complete Support – 1-year warranty, training, and expert local support from EzCut team!

Including:

• Sigmaster Pro V5 for 3 User
• 5pcs cutting blade, 1 blade holder, Pen & Holder
• 1 Year Warranty, Training & Support.
•


📦 Choose from 3 Models:

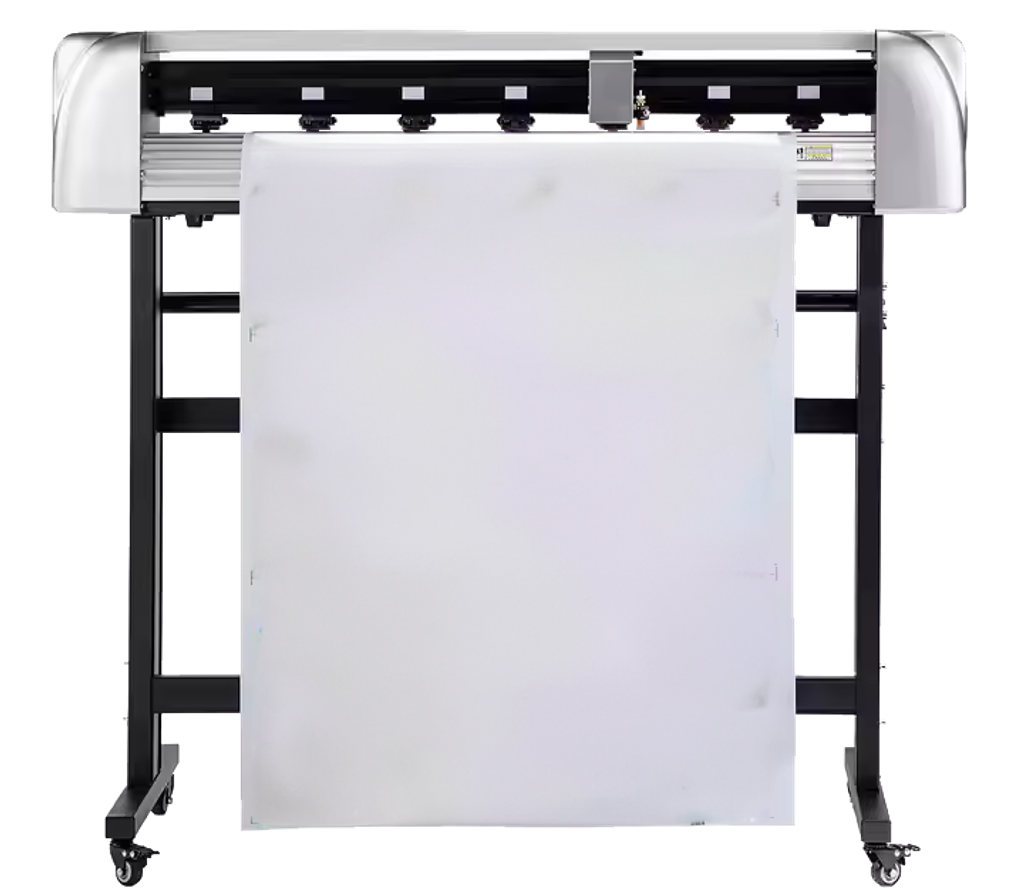

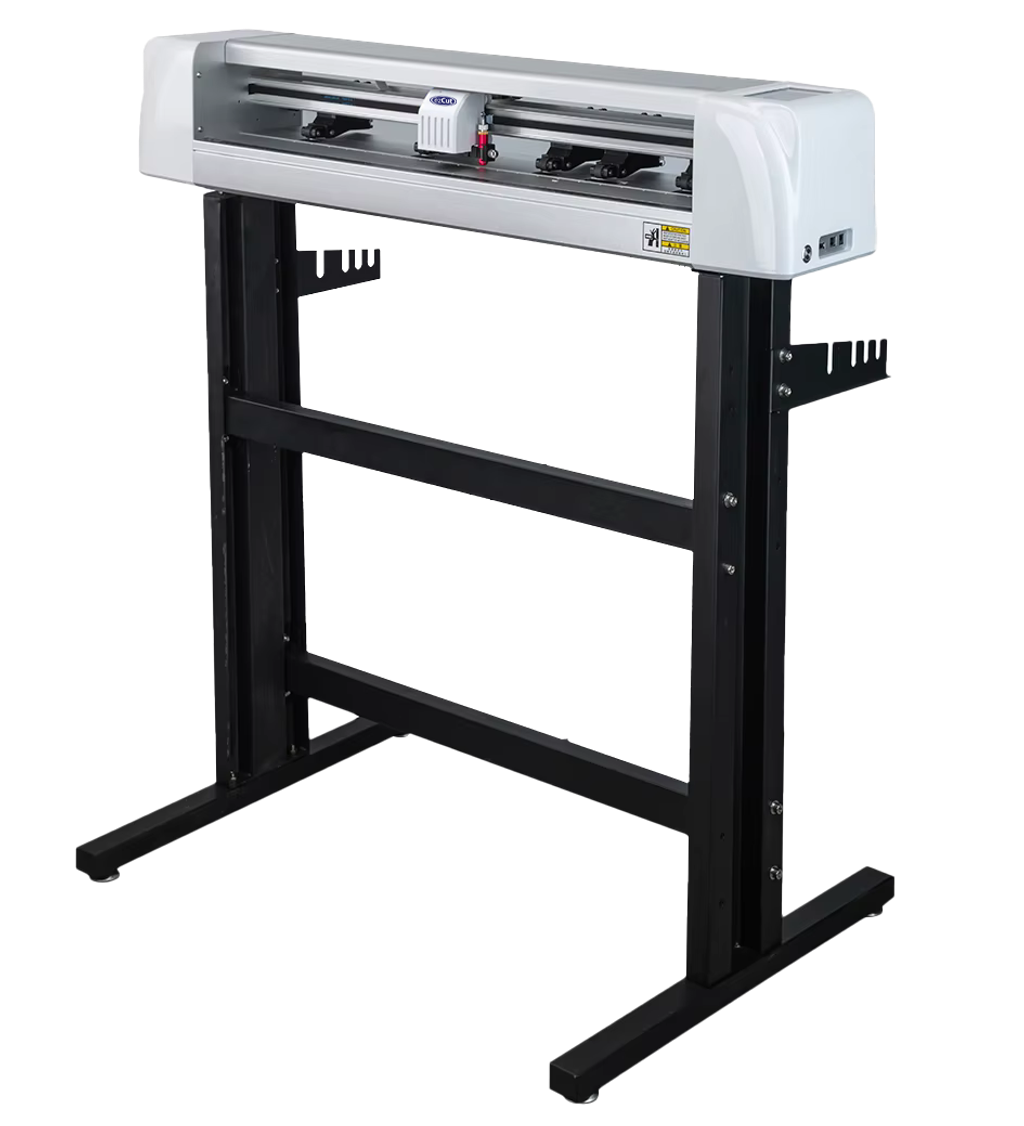

🔹 EzCut C Plus S760 – Max media width 760mm, cutting force 1000g

• Max. media width: 760mm
• Max. cutting width: 640mm
• Packing size: L 1100mm*W 330mm*H 280mm
• Machine size: L 980mm*W 600mm*H 1030mm
• Gross/Net weight: 29kgs/25kgs
• Control panel: 5.0inch LCD touch screen
• Motor: Micro step subdivision motor
• Cutting length: Unlimited
• Cutting accuracy: +/- 0.01mm
• Repeatability: 0.082mm
• Max.cutting speed: 700mm/s
• Max.force: 1000g
• Main board: ARM smart dual-core chip
• Auto contour cut: Camera
• Number of heads: 1
• Blade type: Rowland blade
• Floorstand: yes
• Drawing instruction: Automatic recognition DMPI and HPGL
• Connect or interface: USB cable/Udisk/WIFI(optional)
• Power: ﹤100w
• Working environment: ﹢5℃﹣﹢35℃
• Power supply: 100v-240v(adaptive),50HZ/60HZ
• Support software: CDR/AI/Contour software/signmaster Pro V5
• Memory: 128MB
• Support system: All versions of windows, win 10, win 11

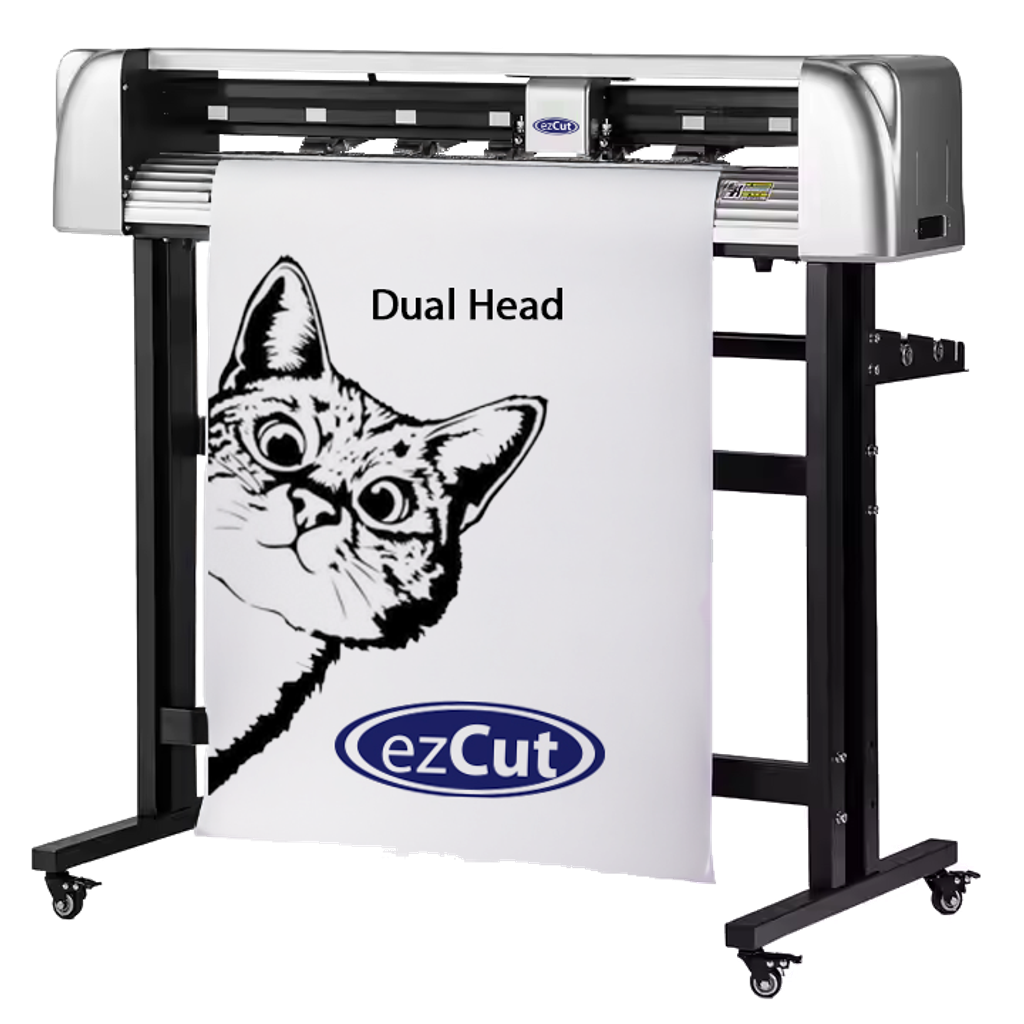

🔹 EzCut C Plus D1000 Dual Head – Dual-head system, max width 1000mm, cutting force 2000g

• Max. media width: 1000mm
• Max. cutting width: 700mm
• Packing size: L 1360mm*W 400mm*H 440mm
• Machine size: L 1250mm*W 600mm*H 1100mm
• Gross/Net weight: 36kgs/30kgs
• Control panel: 5.0inch LCD touch screen
• Motor: Micro step subdivision motor
• Cutting length: Unlimited
• Cutting accuracy: +/- 0.01mm
• Repeatability: 0.082mm
• Max.cutting speed: 700mm/s
• Max.force: 2000g
• Main board: ARM smart dual-core chip
• Auto contour cut: Camera
• Number of heads: 2
• Blade type: Roland blade
• Floorstand: yes
• Drawing instruction: Automatic recognition DMPI and HPGL
• Connect or interface: USB cable/Udisk/WIFI(optional)
• Power: ﹤100w
• Working environment: ﹢5℃﹣﹢35℃
• Power supply: 100v-240v(adaptive),50HZ/60HZ
• Support software CDR/AI/Contour software/signmaster Pro V5
• Memory: 128MB
• Support system: All versions of windows, Win 10, Win11

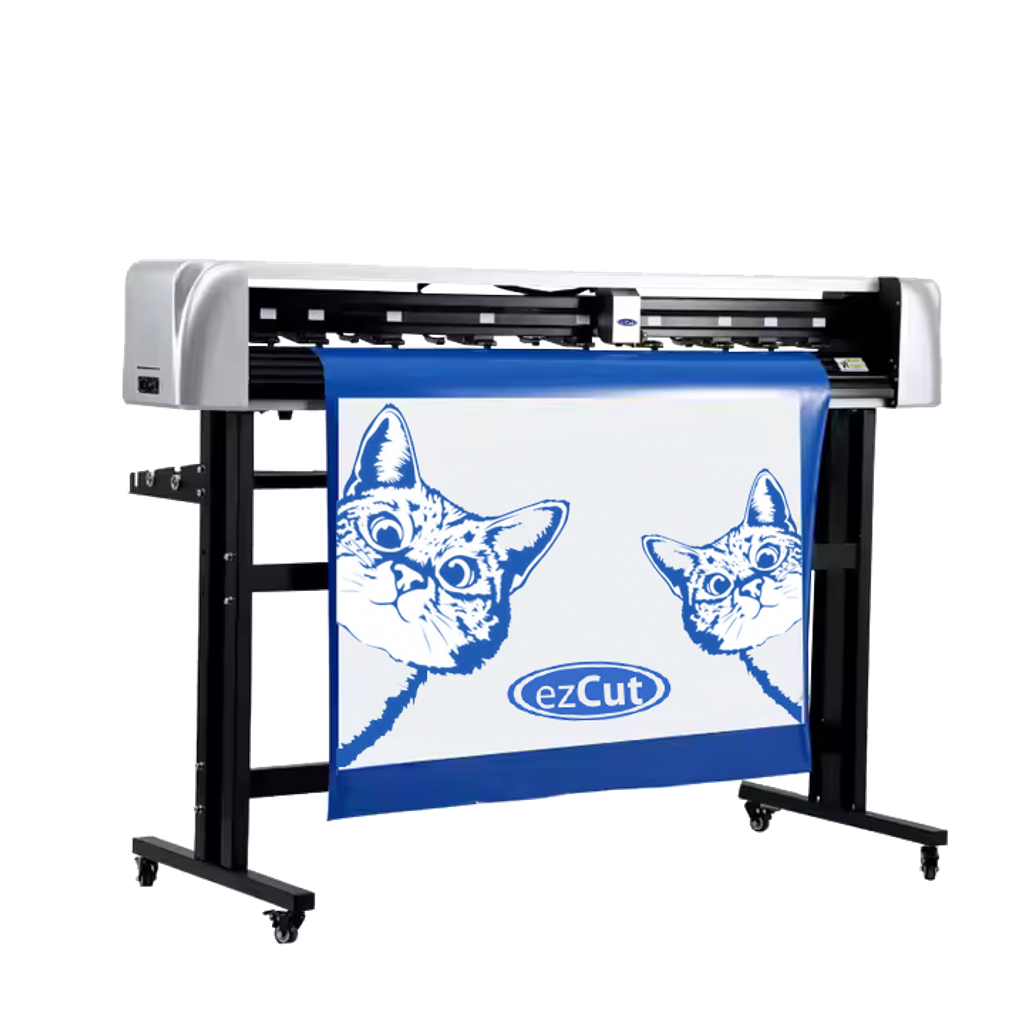

🔹 EzCut C Plus S1400 – Large format up to 1250mm cutting width, cutting force 2000g

• Max. media width: 1400mm
• Max. cutting width: 1250mm
• Packing size: L 1760mm*W 400mm*H 440mm
• Machine size: L 1650mm*W 600mm*H 1100mm
• Gross/Net weight: 42kgs/36kgs
• Control panel: 5.0inch LCD touch screen
• Motor: Micro step subdivision motor
• Cutting length: Unlimited
• Cutting accuracy: +/- 0.01mm
• Repeatability: 0.082mm
• Max.cutting speed: 700mm/s
• Max.force: 2000g
• Main board: ARM smart dual-core chip
• Auto contour cut: Camera automatically contour cut
• Number of heads: 1
• Blade type: Rowland blade
• Drawing instruction: Automatic recognition DMPI and HPGL
• Connect or interface: USB cable/Udisk/WIFI(optional)
• Power: ﹤100w
• Working environment: ﹢5℃﹣﹢35℃
• Power supply: 100v-240v(adaptive),50HZ/60HZ
• Support software: CDR/AI/Contour software/signmaster Pro V5
• Memory: 128MB
• Support system: All versions of windows, Win 10, Win11

⚡ Ideal for signage, printing, label sticker cutting, and more!

EzCut – Advanced Machines for Smarter Cutting!
